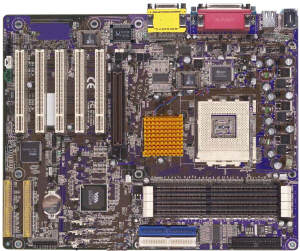

| AK37GT/R
Form Factor: ATX
CPU Support: Socket A CPU
AMD Duron CPU with 200MHz FSB
AMD Athlon CPU with 200 /
266MHz FSB
AMD Athlon XP CPU with 266MHz
FSB
Chipsets: VIA KT400
(North bridge) VIA KT400
High Performance Athlon CPU
Interface
Integrated full featured
Accelerated Graphics Port (AGP)
controller to support 2X / 4X / 8x AGP mode
Integrated high bandwidth
533MB/S 8-bit Vlink Host controller
Integrated advanced high
performance DDR DRAM controller
(South bridge) VIA VT8235
Built in high bandwidth
533MB/S V-link Host controller
Integrated USB 2.0 controller
with two root hub and six function
ports
Integrated dual channel UDMA
33/66/100/133 master mode
EIDE controller
Built in Fast Ethernet
Controller
LPC interface for Low Pin
Count interface to Super-I/O or ROM
Integrated Keyboard Controller
with PS2 mouse support
Integrated DS12885-style Real
Time Clock with extended 256
byte CMOS RAM and Day/Month Alarm for ACPI
System Management Bus
Interface
Sophisticated PC99-Compatible
Mobile Power Management
Integrated Plug and Play
Controller
Memory: 4 x 184-pin DIMM
Supports 6 banks up to
PC1600/2100/2700/3200 compliant 3 GB
DRAMs (512Mb x8/x16 DRAM technology) for un-buffered DDR
SDRAM module
Supports 8 banks up to
PC1600/2100/2700/3200 4 GB DRAMs
(512Mb x8/x16 DRAM technology) for register DDR SDRAM DDR
SDRAM module
No ECC function support
6 Channel Audio: Realtek 650
Support 5.1 speakers
Support Digital S/PDIF input /
output
USB Hub: Built in VT8235
Integrated USB Controller with
two root hubs and six function ports
USB OHCI v1.1/v.2.0 and Intel
Universal HCI v.1.1 compatible
Support up to 6 ports
Expansion Slot:
AGP: 1 AGP slot
Support AGP 2.0 compliant, 2X,
4X, 8X AGP device
Support 1.5V AGP electrical
device only
Supports SideBand Addressing
(SBA) mode (non-multiplexed
address / data)
Integrated AGP-proof circuit
to prevent the electrical damage by 3.3V
AGP card
PCI: 5 PCI slots, PCI 2.2
compliant
Support 32 bit PCI master mode
device
133 MByte/sec Maximum
Throughput
LPC I/O: ITE 8705F
Comply with Intel Low Pin
Count Interface Specification Rev. 1.0
ACPI V. 1.0 compliant
Built in H/W monitor feature
Two 16C550 UARTs
Supports two standard Serial
Ports
Supports IrDA 1.0/ASKIR
protocols
Supports Smart Card Reader
protocols
Built in Smart Card Reader
IEEE 1284 Parallel Port
Standard mode --
Bi-directional SPP compliant
Enhanced mode -- EPP V. 1.7
and V. 1.9 compliant
High speed mode -- ECP, IEEE
1284 compliant
Floppy Disk Controller
Supports two 360K/ 720K/ 1.2M/
1.44M/ 2.88M floppy disk drives
Enhanced digital data
separator
3-Mode drives supported
Game Port
Dedicated MIDI Interface
Support power-failure resume
and power button de-bounce
10/100 Fast Ethernet:
Integrated Fast Ethernet
controller in VT8235
On board SEEQ (MII interface
compliant) PHYceiver
Support 1 / 10 / 100 MHz full
and half duplex operation
IDE interface: On board High
Point 372 (AK37GTR only)
2 x UltraDMA/133 Bus Master
IDE from VT8235
2 x UltraDMA/133 Bus Master
IDE from High Point 372 to support
RAID 0, RAID1, RAID0+1 function (AK37GTR only)
80-pin Cable Backward
Compatible Legacy ATAPI Devices
ATAPI IDE CD-ROM, CD-R, CD-RW,
and LS-120 Supports
Serial ATA interface: On board
Marvell 88i8030 Serial ATA bridge
(AK37GTR only)
2 x serial ATA from High Point
372 to support RAID 0, RAID1,
H/W Monitoring: Built in ITE
8705F
2 thermal inputs from remote
thermal resistor to monitor system
temperature
1 thermal inputs from thermal
diode to monitor CPU temperature
8 voltage monitor inputs
1 chassis intrusion input
Monitors 3 fan tachometer
inputs
Smart Guardian Controller to
provide programmable fan speed
automatic control
Power Management:
ACPI v1.0 Compliant
APM v1.2 Compliant
Supports multiple system
suspend types: power-on suspends with
flexible CPU/PCI bus reset options, suspend to DRAM, and suspend
to disk (soft-off), all with hardware automatic wake-up
Multiple suspend power plane
controls and suspend status indicators
Thermal alarm on either
external temperature sensing circuits
Support Power Fail Resume
function
Bios: Built in 2Mb Flash ROM
Award PnP BIOS
DMI 2.3
BIOS FSB step-less setting
from 100MHz to 200MHz
BIOS Multiplier setting from
5X to 14X
CPU core voltage setting from
1.05V ~ 2.30V
DDR voltage setting from 2.5 –
3.0V
AGP voltage setting from 1.5V
– 1.8V
Support IRQ manual assign
table
On Board Ports / Connectors / Jumpers / Headers (front/back
panel):
Ports:
Back Panel:
2 Serial Ports
1 Parallel Port (SPP, EPP, ECP)
1 PS/2 Keyboard Port
1 PS/2 Mouse Port
2 USB 2.0 Ports
1 LAN Port
1x Game / MIDI Port
1x Line in, 1x Line out, 1x
Mic
Connectors:
1 x ATX power connector
4 x Fan Power connectors (one
for system chipset fan)
2 x UltraDMA/100/133 Bus
Master IDE (4 connector for AK37GTR
only)
2 x serial ATA (AK37GTR only)
1 x Floppy
Jumpers:
Clear CMOS
BIOS Boot block protection
Headers:
2 set of 2 x5 pin Front Panel
USB 2.0 header
SPDIF IN/Out
Mini CD Audio in
TAD in
CD Audio in
Other Features:
Suspend switch and LED
|
|
