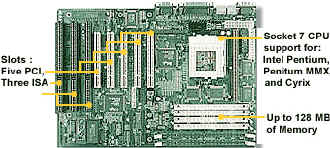

Titan Titan VX ATX (S1472) Motherboard




Benefits and Applications

Tyan Titan VX ATX is a quality, high performance system platform designed for Intel Pentium microprocessors. This mainboard utilizes the Intel 430VX chipset and can support CPU speeds of 75 MHz through 200 MHz. The Titan VX ATX will also support the CyrixM1/6x86 CPU's and the Intel multimedia Pentium P55C which utilizes MMX commands.

The Titan VX ATX's PCI Local Bus provides high performance capabilities that are ideal for a wide range of demanding applications such as: CAD, CAM, CAE, networking, multi-user environments, database management, desktop publishing, image processing and 3D animation.

This integrated system board achieves high reliability with numerous features and yet is small enough to be supported in a ATX form-factor. Some of the features included are: on-board dual channel PCI PIO and DMA IDE, on-board floppy controller, on-board high speed I/O, and support for pipeline-burst SRAM.

Flexibility and expandibility have been designed into the Titan VX ATX. With I/O and drive controller support built on-board, the five PCI and three ISA (One ISA and one PCI as a shared slot) slots are free for numerous add-on expansion cards.



Standard Features



Processor

Intel Pentium 75 - 200 MHz

Cyrix P120+, P150+, P166+

Intel P55C with MMX

Processor speeds: CPU compatibility chart





Chipset

Intel 430VX Chipset





System Memory

8 to 128MB MAX

Four 72-pin SIMM Sockets

2 168-Pin DIMM Sockets (2 banks)

Fast Page Mode or EDO Dram Support

Sync DRAM Support (Unbuffered Only)

3.3v and 5.0v DRAM Support

3.0 V SDRAM Support





Expansion Slots

Five 32-bit PCI Bus Mastering Slots

Three 16-bit ISA Slots

One Shared PCI/ISA Slot - 7 usable







Disk Drive & System I/O

Two PCI Bus-Master enhanced IDE Ports

4 HDD + EIDE CD-ROM Support

Bus-Mastering DMA Mode 2

PIO Mode 3 & 4

Two Floppy Drive Support

Two 16C550 High Speed Serial Ports

One ECP/EPP High Speed Parallel Port

2 USB Ports (Cable not included)

One IR Port

PS/2 Mouse port using IRQ 12





BIOS

Award or AMI BIOS

Green PC Compatible

Microsoft Plug and Play Ready





Form Factor

AT (8.4" x 12.2")

Type "M" I/O Shield (Intel Marl/Aurora Compatible)





Warranty

2 Year Manufacturer's Warranty

Specifications may change without notice
