Tyan Tomcat IIIS is a quality, high performance single processor system platform based on the powerful Intel Pentium microprocessors. This mainboard is designed around the latest and fastest Intel 430HX chipset and can support CPU speeds of 75 MHz through 200 MHz.

The Tomcat IIIS supports EDO memory, Burst EDO, ECC and memory parity checking.This system platform's PCI Local Bus provides high performance capabilities that are ideal for a wide range of demanding applications such as: CAD, CAM, CAE, networking, multi-user environments, database management, desktop publishing, image processing and 3D animation.

This integrated system board achieves the highest reliability and is based on a "Baby AT" form factor. Some of the features included are: on-board dual channel PCI IDE, on-board floppy controller, on-board high speed I/O, Universal Serial Bus and on-board PS/2 mouse connector. (USB and PS/2 Cableing Sold Seperately)

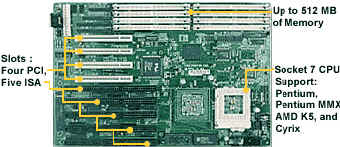

Flexibility and expandibility have been designed into the Tomcat IIIS. With I/O and drive controller support built on-board, the four PCI and Five ISA (One ISA and one PCI as a shared slot) slots are free for add-on expansion cards. With eight SIMM sockets, the Tomcat IIIS can provide a very flexible memory configuration of 8MB to 512MB of RAM.

Standard Features

Processor

Intel Pentium 75 - 200 MHz Processors

Cyrix P120+, P150+, P166+

P55C with MMX

#7 ZIF Socket

Processor speeds: CPU compatibility chart

Chipset

Intel 430HX

System Memory

8-512MB

Eight 72-pin SIMM Sockets

Fast Page Mode or EDO Dram Support

EDO / FPM w/Parity / ECC Support

3.3v and 5.0v DRAM Support

On-board 256K or 512K Burst Cache

Expansion Slots

Four 32-bit PCI Bus Mastering Slots

Five 16-bit ISA Slots

One Shared PCI/ISA Slot - 8 usable

Disk Drive & System I/O

Two PCI Bus-Master enhanced IDE Ports

4 HDD + EIDE CD-ROM Support

Bus-Mastering DMA Mode 2

PIO Mode 3 & 4

Two Floppy Drive Support

Two 16C550 High Speed Serial Ports

One ECP/EPP High Speed Parallel Port

2 USB Ports Rev 1.2

One IR Port

PS/2 Mouse port using IRQ 12

BIOS

Award or AMI BIOS

Green PC Compatible

Microsoft Plug and Play Ready

Form Factor

Baby AT (8.66" x 13.25")

Type "A" I/O Shield (AT Style)

Warranty

2 Year Manufacturer's Warranty

Specifications may change without notice
