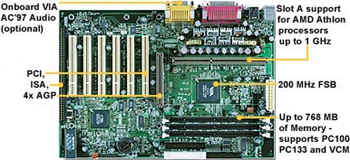

| Benefits and Applications
Tyan Trinity K7 is designed for high performance desktop applications.
With six PCI slots in addition to one shared ISA slot, the Trinity K7
offers maximum expandability and flexibility in an ATX form factor.
Utilizing the new VIA KX-133 chipset, this board offers a 200 MHz FSB,
Slot A support (AMD? Classic Athlon), 4x
AGP, UltraDMA33/66, and PC133 memory support. This feature-rich
systemboard is ideal for graphics and memory-intensive applications.
Trinity K7 Models
Standard Model
Integrated Audio
UPC Number
S2380
N/A
6 35872 00514 5
Standard Features
Processor
Single Slot A
AMD Classic Athlon? 500 MHz to 1 GHz
200 MHz Front Side Bus
Auto-detect Processor Voltage
Clock multiplier 5.0 to 10.0
ECC Protection on system and Cache Interfaces
Processor speeds: CPU compatibility chart
Chipset
VIA Apollo KX-133
VT8371 and VT82C686A
System Memory
Three 168-pin 3.3V DIMM Sockets
Supports up to 768 MB
Supports PC100 / PC133 SDRAM and VCM SDRAM (see Compatiblity List )
ECC memory not supported
Cache Memory
Processor Built-in 128KB L1 Cache
Processor Built-in 512KB L2 Cache
Hardware Monitoring
VIA hardware monitoring chip
3-pin Fan monitoring headers
Flexible Temperature Sensor Under CPU heatsink
Hardware Detects +/- 5V, +/- 12V, CPU status
System Health Status Detect
3-pin Wake on LAN header
3-pin Wake on Ring header
Expansion Slots
One 1x / 2x / 4x AGP v.2.0 slot
Six 32-bit PCI v.2.2 compliant slots
One 16-bit ISA slot (shared w/ a PCI slot)
Total seven usable slots
Integrated I/O
One Floppy connector for up to two drives
Two 9-pin 16550 UART Serial ports
One 25-pin ECP / EPP Parallel port
PS/2 Mouse & Keyboard ports
Four USB ports (two headers via cable optional)
Integrated Audio (optional)
VIA VT82C686A Southbridge Digital
Link Audio
AC'97 Audio Codec
Line-in, Line-out, Mic ports
4-pin CD-ROM audio header
Integrated PCI IDE
Dual channel master mode
Supports four Enhanced IDE devices
Support for PIO Mode 3/4, Ultra DMA
33 / 66 and ATAPI compliant devices
Power Supply
One 20-pin ATX power connector
Input voltage - 90V to 130V at 60 Hz
Output Wattage - 235W
Output Voltage - 3.3V, +/- 5V, +/- 12V
Backup Battery
- 3.0V to 3.6V Cr2032 lithium
- magnesium-oxide coin cell
BIOS
Award BIOS 2Mbit Flash RAM
Supports APM & ACPI
Auto detection of memory size
Auto configuration of IDE hard disk types
User settings of hardware monitoring
Multiple boot options
DMI 2.-0 / PC99 compliant
Form Factor
ATX 2.01 (12.0" x 8.2")
4-layer board
Stacked Mouse / Keyboard ports
Stacked (2) USB ports
Stacked (2) Serial / (1) Parallel connectors
Type "C" I/O Shield (Intel Caymen Compatible)
Regulatory
FCC Class B (Declaration of Conformity)
European Community CE (Declaration of Conformity)
Package List
- Trinity K7 motherboard / User's manual
- 40-pin IDE & 34-pin floppy cable pack
- 80-pin ATA-66 IDE cable
- Driver CD
- URM Retention Module
|
