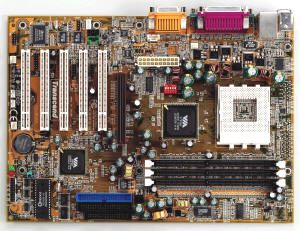

TS-AKR4/N |
 |
| Support CPU |
AMD CPU Duron
600~900+MHz(FSB 200 MHz)
AMD CPU Athlon 600~1400+MHz(FSB 200/266 MHz)
AMD CPU Athlon XP 1500~1900+MHz(FSB 266 MHz) |
| Chipset |
KT266A
(KT266A+VT8233), 10/100 Ethernet |
| System Bus |
100~150MHz(100/133 MHz guaranteed)
Adjustable by BIOS 1MHz step |
| System Memory |
3x184 pin DDR
DIMMs up to 3GB
Support PC1600, PC2100 DDR memory |
| IDE |
2 x PCI Bus
Master IDE Ports support up to 4 devices
Support PIO Mode 3/4
Support DMA mode 2
Support Ultra DMA 33/66/100 |
| Onboard VGA |
|
| Onboard Audio |
Built-in AC97
CODEC audio control |
| Expansion Slot |
1 x AGP4x slot
5 x PCI slots (PCI v2.2 compliant) |
| I/O Port |
10/100 ethernet
RJ45 port
1 x FDD port (3 mode, 1.2/1.44/2.88MB FDD, LS120 )
1 x PS/2 Mouse port
1 x PS/2 Keyboard port
1 x Parallel port(SPP/EPP/ECP)
2 x RS232 port(16550 Fast UART compatible)
6 x USB ports (4 by cable)
Game/MIDI connector
Audio Line-out/Line-in/MIC-in jack
PC99 color coding compliant |
| BIOS Function |
ezBIOS Live
update
ezBIOS Anti-Virus
ezBIOS BIOS protect
ezBIOS Linear overclocking
Award BIOS with Green, APM, Plug and Play, DMI functions
Enhanced ACPI Feature for PC98/Win98 Compliance |
| System Hardware Monitor |
System voltage,
temperature & fan status monitor
3 x fan status monitors with F/W programmable fan speed
CPU overheat alarm |
| Other Features |
Alarm/Modem ring
on
Software power off control
PC99 compliant
Wake on LAN
Boot-up virus warning
Suspend to RAM (STR)
Power failure resume
CPU Core voltage adjustable |
| Form Factor |
ATX Form Factor
4 layer PCB
8.4" x 12" (21.3cm x 30.5cm) |
