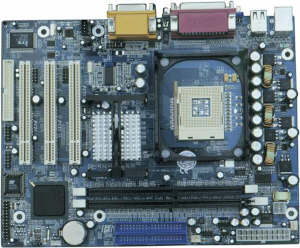

Intel 845GL AGP 4x Pentium 4 DDRAM Micro ATX Mainboard
Support Intel 478 -Pin Pentium 4 and Celeron Processors FC-PGA2
Processors (Willamette/Northwood)
Support 400MHz Processor System Bus
Intel 82845GL + ICH4 chipset
Support up to 2GB Memory capacity
Support PC 1600 or PC2100 DDR DIMM (DDR200/DDR266)
3 x PCI slots
6 x USB2.0 ports (4xRear USB, 2 x Front), 1 x IrDA port header
1 x FDD port, 1 x LPT port with ESD/EMI protection, 2 x COM ports
Jumperless for CPU Frequency Setting
Dual IDE Channels Supporting Four Ultra-DMA33/66/100 IDE Devices
WAKEUP-LINK Header to Support Intel Wake-On-LAN
Integrated onboard 2D&3D Graphics accelerator
Integrated AC97 Audio Onboard(Option 2 channels or 4 channels or 6
channels)
AC97 2.2 or AC97 2.1 Compliant Codec with 3D Stereo Enhancement
1 x Line-out, 1 x Line-in(or Sourround-out), 1 x Mic-in(or Bass-out and
Center-out)
1 x CD-in,1 x Game Port
1 x Audio front panel header
Overcurrent protection over Keyboard & Mouse
Coloured Connectors: FDD, IDE, COMs etc.
Keyboard & PS/2 Mouse Wakeup
Phoenix BIOS PC99/ACPI/DMI Compliant
ATX Power Supply Interfacewith
CPU over heat protect
Micro ATX form factor, 245mm x 190mm
